Label Editing

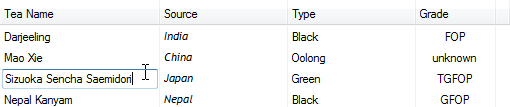

Label editing allows user to edit items and sub-items on the fly. Just set the LabelEdit property to true (or LabelEditModeItems to BetterListViewLabelEditMode.Text) and the user is allowed to edit items using text box:

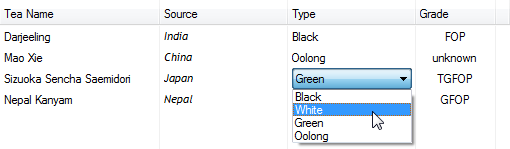

To enable label editing for sub-items, set the LabelEditModeSubItems property to value other than LabelEditModeSubItems.None. For example, you can use different editing controls, like a combo box by setting LabelEditModeSubItems to LabelEditModeSubItems.CustomControl. Then handler RequestEmbeddedControl event and return the editing control in the event handler.

You can also specify position of the editing control by setting BetterListViewRequestEmbeddedControlEventArgs.ControlPlacement. The position is determined from sub-item text position by default.

There are three basic editing controls pre-packed in Better ListView:

BetterListViewTextBoxEmbeddedControl
- TextBox-based control used for basic label editing.
BetterListViewComboBoxEmbeddedControl
- ComboBox-based control used for editing enumerations.
BetterListViewDateTimePickerEmbeddedControl
- DateTimePicker-based control used for editing date and time values.

If you want to create your own editing controls, see Embedded Controls, for more information.

Label Editing Events

Here are the events associated with label editing. They are mentioned in the order of occurence during the label editing process:

BeforeLabelEdit
- Raised after an item is clicked and label editing is about to proceed. Label editing can be cancelled at this point.
AfterLabelEditCancel
- Raised after item label is edited. Label editing can be cancelled at this point.
AfterLabelEditEmbeddedControl
- Raised after item label is edited using custom control. Label editing cannot be cancelled at this point.
AfterLabelEdit
- Raised after item label is edited. Label editing cannot be cancelled at this point.

Label Editing Activation

LabelEditActivation property allows you to specify label editing invocation. It is a flags enum, so you can combine the values:

Default
- Default behavior. None of the options below are used.
Keyboard
- Label editing can be invoked using F2 key.
SingleClick
- Label editing can be invoked by clicking on item text without needing the item to be focused.
Immediate
- Label editing starts immediately when invoked, no delay (e.g. for canceling label edit by clicking on other item) is applied.
ClickThrough
- Label editing is performed even when user clicks on unfocused control. This is behavior similar to button, which can be clicked even when its parent form is not active at the moment of clicking (but becomes focused thereafter).

Default Action

When label edit is terminated by the control (e.g. when user clicks outside the editing control or Better ListView loses focus), the edited data can be either accepted or cancelled.

By default, the data is accepted, but this can be changed by setting LabelEditDefaultAccept to false.

Invoking Label Editing

Label editing can be initiated and terminated from user code using BeginEdit and EndEdit methods.

BeginEdit is adopted from .NET ListView and allows you to start label editing of a specific sub-item (e.g. when some keyboard shortcut is pressed).

EndEdit can be used to terminate label editing at any time. This method can be called even when label editing is not currently in progress.

Sample Source Code

The following sample shows initialization of a Better ListView with custom label editing for sub-items:

this.listView.BeginUpdate();

this.listView.Columns.AddRange(new[] { "Property", "Visiblity" });

this.listView.Items.Add(new[] { "AlphaProperty", "public" });
this.listView.Items.Add(new[] { "BetaProperty", "internal" });
this.listView.Items.Add(new[] { "GammaProperty", "private" });

// start editing items with just single click (optional)
this.listView.LabelEditActivation = BetterListViewLabelEditActivation.SingleClick;
// we would like to edit sub-items, so set editing mode of sub-items
this.listView.LabelEditModeSubItems = BetterListViewLabelEditMode.CustomControl;

this.listView.EndUpdate();

// custom label editing needs to handle this event to obtain actual editing control
this.listView.RequestEmbeddedControl += ListViewRequestEmbeddedControl;

Visual Basic

ListView.BeginUpdate()

ListView.Columns.AddRange (New String() {"Property", "Visiblity"})

ListView.Items.Add (New String() {"AlphaProperty", "public"})
ListView.Items.Add (New String() {"BetaProperty", "internal"})
ListView.Items.Add (New String() {"GammaProperty", "private"})

' start editing items with just single click (optional)
ListView.LabelEditActivation = BetterListViewLabelEditActivation.SingleClick
' we would like to edit sub-items, so set editing mode of sub-items
ListView.LabelEditModeSubItems = BetterListViewLabelEditMode.CustomControl

ListView.EndUpdate()

' custom label editing needs to handle this event to obtain actual editing control
AddHandler ListView.RequestEmbeddedControl, AddressOf ListViewRequestEmbeddedControl

The RequestEmbeddedControl event handler provides the actual label editing control:

IBetterListViewEmbeddedControl ListViewRequestEmbeddedControl(object sender, BetterListViewRequestEmbeddedControlEventArgs eventArgs)
{
    if (eventArgs.SubItem.Index == 1) // user edits the first sub-item
    {
        // create ComboBox editing control from BetterListView
        BetterListViewComboBoxEmbeddedControl comboBoxEmbeddedControl = new BetterListViewComboBoxEmbeddedControl();

        comboBoxEmbeddedControl.DropDownStyle = ComboBoxStyle.DropDownList;

        // add items into the editing control
        comboBoxEmbeddedControl.Items.AddRange(
            new[]
            {
                "public",
                "internal",
                "private"
            });

        return comboBoxEmbeddedControl;
    }

    return null;
}

Visual Basic

Function ListViewRequestEmbeddedControl (ByVal sender As Object,
                                                 ByVal eventArgs As BetterListViewRequestEmbeddedControlEventArgs) _
    As IBetterListViewEmbeddedControl

    If eventArgs.SubItem.Index = 1 Then

        ' user edits the first sub-item
        ' create ComboBox editing control from BetterListView
        Dim comboBoxEmbeddedControl As New BetterListViewComboBoxEmbeddedControl()

        comboBoxEmbeddedControl.DropDownStyle = ComboBoxStyle.DropDownList

        ' add items into the editing control
        comboBoxEmbeddedControl.Items.AddRange (New String() {"public", "internal", "private"})

        Return comboBoxEmbeddedControl

    End If

    Return Nothing

End Function
